14K Gold Briolette Dangle Mounting Bail for Pendant Charm
- In stock, ship in 1-3 business days domestic

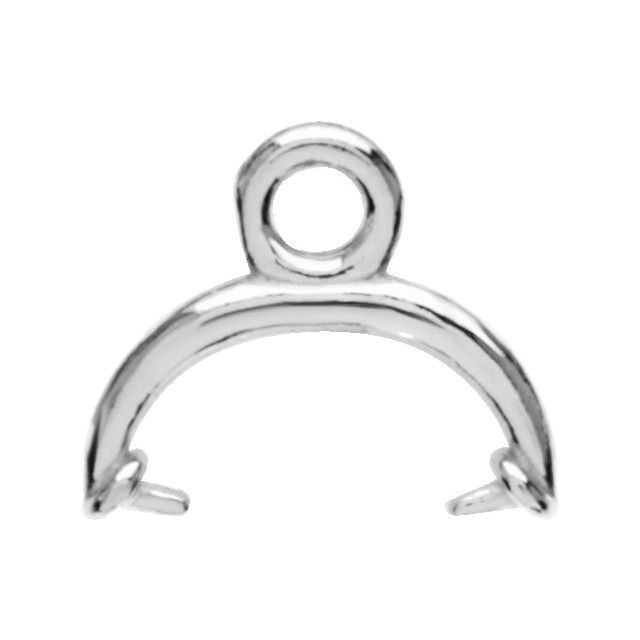

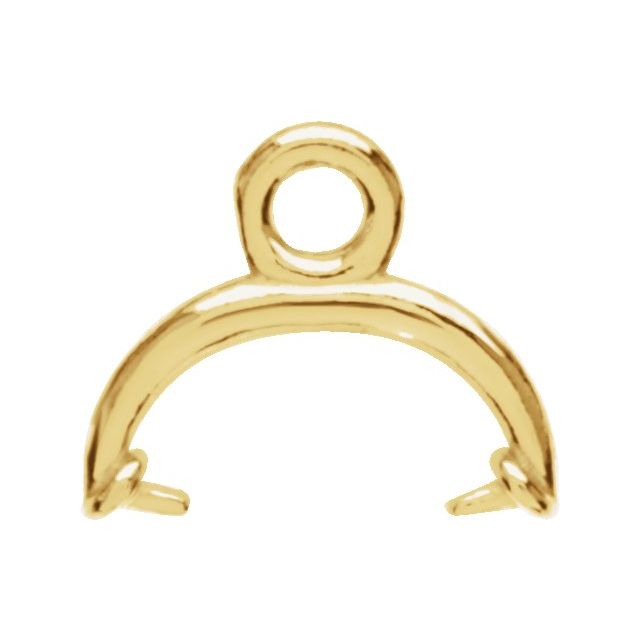

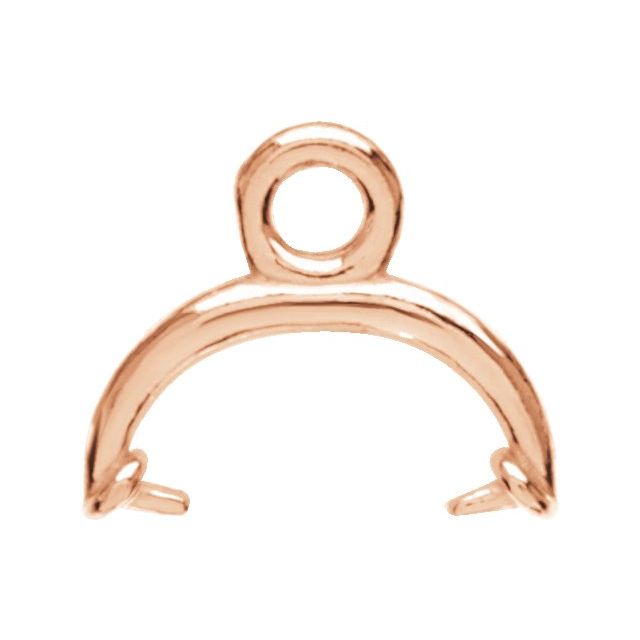

14K gold briolette dangle mounting bail for pendant charm. Premium briolette dangle drop parts and charm mount link findings designed for delicate stone settings. Compact bail accommodates briolette stones with ease—simply pair with a split ring or additional bail for secure top attachment.
Crafted from 14k gold with semi-polished finish, these professional-grade findings deliver precision for jewelry makers at every skill level. Choose between two versatile sizes: 6x4mm (0.07g) or 8x5mm (0.09g). Horizontal jump ring orientation ensures smooth integration into custom designs. Minimal profile keeps focus on your stone while maintaining structural integrity.
- Finish state : semi-polished,
- Primary Stone Size : 6x4mm and 8x5mm,
- Jump Ring Orientation : Horizontal,
| Stone Size | 6x4 mm | 8x5 mm |
| Approx. Weight: | 0.043 DWT (0.07 grams) | 0.061 DWT (0.09 grams) |
| Approx. Length | 5 mm | 5.7 mm |
| Approx. Width | 5 mm | 5.5 mm |
| Approx. Height | 1.25 mm | 1.25 mm |
| Dangle Jump Ring ID | 1.25 mm | 1 mm |
| Dangle Jump Ring OD | 2 mm | 2 mm |
- Made in USA.
Matches With
The actual stone size of the carat weight may vary depend on the material and other factors such as depth and pavilion angle. Actual measurements (length x width x height) and a picture of the stone to better assist you.
To measure gems with a ruler / Calipers:
1. Place the stone on a flat surface with the pointed facing up,
2. Measure the length of the longest dimension,
3. Measure the longest width perpendicular to the length,
4. Measure the depth by placing the stone tip up, holding a ruler vertically against the side of the stone and measuring the distance from the flat table surface to the culet.
If you're not sure how to accurately measure a gems, seek help from a local jeweler.
If there is anything else we can help, please feel free to contact us.
Standard Stone Size and Carat Weight Chart
| Rounds |
Squares / Princess |
Ovals | |||
| Size | Weight | Size | Weight | Size | Weight |
|---|---|---|---|---|---|
| 1.6 mm | .02 carat | 2 mm | .05 carat | 5 x 3 mm | .25 carat |
| 2 mm | .03 carat | 2.5 mm | .09 carat | 6 x 4 mm | .5 carat |
| 2.5 mm | .06 carat | 3 mm | .16 carat | 7 x 5 mm | .75 carat |
| 3 mm | .10 carat | 3.5 mm | .25 carat | 8 x 6 mm | 1.0 carat |
| 3.5 mm | .16 carat | 4 mm | .33 carat | 9 x 7 mm | 1.5 carat |
| 4 mm | .25 carat | 4.5 mm | .50 carat | 10 x 8 mm | 2.16 carat |
| 4.5 mm | .33 carat | 5 mm | .75 carat | 11 x 9 mm | 3.5 carat |
| 5 mm | .50 carat | 5.5 mm | 1.0 carat | 12 x 10 mm | 4.25 carat |
| 5.5 mm | .62 carat | 6 mm | 1.25 carat | 14 x 10 mm | 6.0 carat |
| 6 mm | .75 carat | 6.5 mm | 1.5 carat | 14 x 12 mm | 8.0 carat |
| 6.5 mm | 1.0 carat | 7 mm | 2.0 carat | 16 x 12 mm | 9.33 carat |
| 7 mm | 1.25 carat | 7.5 mm | 2.5 carat | 18 x 13 mm | 14.2 carat |
| 7.5 mm | 1.62 carat | 8 mm | 3.0 carat | ||
| 8 mm | 2.0 carat | 8.5 mm | 3.75 carat | ||
| 8.5 mm | 2.33 carat | 9 mm | 4.0 carat | ||
| 9 mm | 2.9 carat | 9.5 mm | 5.0 carat | ||
| 9.5mm | 3.25 carat | 10 mm | 5.5 carat | ||
| 10 mm | 3.75 carat | 10.5 mm | 6.0 carat | ||
| 10.5 mm | 4.5 carat | 11 mm | 7.5 carat | ||
| 11 mm | 5.0 carat | 12 mm | 9.5 carat | ||
| 11.5 mm | 5.375 carat | 13 mm | 13.2 carat | ||
| 12 mm | 6.125 carat | 14 mm | 16.5 carat | ||
| 13 mm | 7.75 carat | 15 mm | 20.25 carat | ||
| 14 mm | 9.75 carat | 16 mm | 24.6 carat | ||
| 15 mm | 11.85 carat | ||||
| 16 mm | 16 carat | ||||
| 17 mm | 17.25 carat | ||||
| 8 mm | 20.5 carat | ||||
| 19 mm | 24.0 carat | ||||
| 20 mm | 28.0 carat | ||||
| 21 mm | 34.8 carat | ||||
| 22 mm | 41.8 carat | ||||
| Emerald | Pear | Marquise | |||
| Size | Weight | Size | Weight | Size | Weight |
|---|---|---|---|---|---|
| 5 x 3 mm | .33 carat | 3 x 2 mm | .05 carat | 4 x 2 mm | .08 carat |
| 6 x 4 mm | .625 carat | 4 x 3 mm | .14 carat | 5 x 2.5 mm | .15 carat |
| 7 x 5 mm | 1.25 carat | 5 x 3 mm | .2 carat | 5 x 3 mm | .20 carat |
| 8 x 6 mm | 1.75 carat | 6 x 4 mm | .33 carat | 6 x 3 mm | .25 carat |
| 9 x 7 mm | 2.5 carat | 7 x 5 mm | .5 carat | 8 x 4 mm | .50 carat |
| 10 x 8 mm | 3.75 carat | 8 x 5 mm | .9 carat | 9 x 5 mm | .75 carat |
| 11 x 9 mm | 4.75 carat | 9 x 6 mm | 1.5 carat | 10 x 5 mm | .9 carat |
| 12 x 10 mm | 5.0 carat | 10 x 7 mm | 1.75 carat | 11 X 5.5 mm | 1.12 carat |
| 14 x 10 mm | 8.5 carat | 11 x 7 mm | 2 carat | 12 x 6 mm | 2.0 carat |
| 14 x 12 mm | 9.0 carat | 12 x 8 mm | 3.0 carat | 14 x 7 mm | 3.0 carat |
| 16 x 12 mm | 10.5 carat | 13 x 9 mm | 3.5 carat | 16 x 8 mm | 4.0 carat |
| 18 x 13 mm | 14.2 carat | 15 x 10 mm | 5 carat | 18 x 9 mm | 6.0 carat |
| 20 x 15 mm | 20.3 carat | 16 x 12 mm | 8.6 carat | 20 x 10 mm | 8.5 carat |
| 25 x 18 mm | 52.2 carat | 18 x 12 mm | 9.3 carat | ||
| 25 x 18 mm | 30.6 carat | 20 x 15 mm | 18 carat | ||
| 30 x 22 mm | 54.5 carat | 22 x 16 mm | 23 carat | ||
| 23 x 17 mm | 25 carat | ||||
| 25 x 18mm | 27 carat | ||||
| 27 x 20mm | 30 carat | ||||
| 30 x 22mm | 34 carat | ||||
| Cushion | Heart | Asscher | |||
| Size | Weight | Size | Weight | Size | Weight |
|---|---|---|---|---|---|
| 4 x 4 mm | .375 carat | 4 x 4 mm | .25 carat | 3 x 3 mm | .16 carat |
| 4.5 x 4.5 mm | .5 carat | 5 x 5 mm | .5 carat | 3.5 x 3.5 mm | .25 carat |
| 5 x 5 mm | .625 carat | 6 x 6 mm | .75 carat | 4 x 4 mm | .33 carat |
| 5.5 x 5.5 mm | .75 carat | 6.5 x& 6..5 mm | 1.0 carat | 4.5 x 4.5 mm | .5 carat |
| 6 x 6 mm | 1.25 carat | 7 x 7 mm | 1.5 carat | 5 x 5 mm | .75 carat |
| 6.5 x 6..5 mm | 1.5 carat | 8 x 8 mm | 2.0 carat | 5.5 x 5.5 mm | 1.0 carat |
| 7 x 7 mm | 2.0 carat | 9 x 9 mm | 3.0 carat | 5.9 x 5.9 mm | 1.33 carat |
| 8 x 6 mm | 2.0 carat | 10 x 10 mm | 4.0 carat | 6 x 6 mm | 1.25 carat |
| 8 x 8 mm | 2.9 carat | 11 x 11 mm | 5.0 carat | 6.25 x 6.25 mm | 1.37 carat |
| 9 x 7 mm | 2.5 carat | 12 x 12 mm | 5.66 carat | 6.5 x 6.5mm | 1.5 carat |
| 10 x 8 mm | 4.0 carat | 15 x 15 mm | 10.75 carat | 6.6 x 6.6 mm | 1.75 carat |
| 12 x 10 mm | 7.5 carat | 16 x 16 mm | 13.25 carat | 7 x 7 mm | 2.0 carat |
| 14 x 10 mm | 9.5 carat | 18 x 18 mm | 15.33 carat | 8 x 8 mm | 3.0 carat |
| Trillion | |||
| Size | Weight | Size | Weight |
|---|---|---|---|
| 2 x 2 x 2 mm | 0.04 carat | ||
| 3 x 3 x 3mm | 0.06 carat | ||
| 3.5 x 3.5 x 3.5mm | 0.125 carat | ||
| 4 x 4 x 4mm | 0.1666 carat | ||
| 4.5 x 4.5 x 4.5mm | 0.2 carat | ||
| 5 x 5 x 5mm | 0.333 carat | ||
| 5.5 x 5.5 x 5.5mm | 0.375 carat | ||
| 6 x 6 x 6mm | 0.5 carat | ||
Most mass-produced jewelry settings come in standard stone sizes.
If your gemstone does not fit in a standard setting, you will need to custom made.
